Go Direct® EKG Sensor
The Go Direct EKG Sensor records electrical signals produced during heart or muscle contractions. It connects via Bluetooth ® wireless technology or via USB to your device.
Technical Specifications
Range±200 mV
WiredUSB
WirelessBluetooth

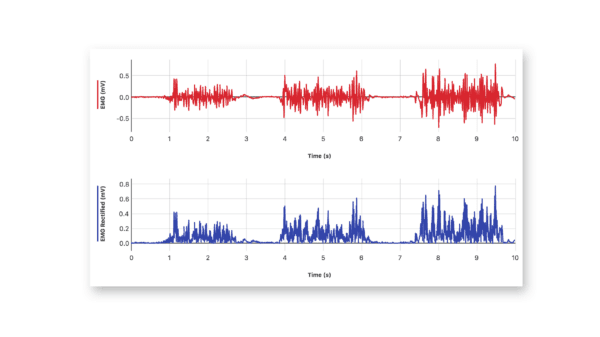

Resolution0.024 µV Maximum sampling rate: 400 samples/s EKG channel settings High-pass: 0.300 Hz Low-pass: 22.5 Hz –3 dB cutoff with –80 dB attenuation above 50 Hz EMG channel settings High-pass: 2 Hz Low-pass: 29 Hz –3 dB cutoff with –80 dB attenuation above 50 Hz Heart rate calculation Sample windows: 6 s Advance interval: 1 s Connections
ConnectivityBluetooth / USB
ICSE Coverage
ICSE Curriculum Alignment
7
experiments
3
classes
1
subjects
Biology
Experiments per class
Class 7
3
Class 8
2
Class 10
2
ICSE Practicals
Mapped Experiments
